Bring the Outside Inside w/ Folding Doors
The Veka Fold and Slide door system offers contemporary style, effective design and excellent reliability.
Our Fold and Slide door system provides superior operating performance and smooth integration into any architectural style and space.
The door systems are engineered using high quality PVC-Window and Door Profiles and superior hinge and locking systems that are reliable and secure.
The rollers along which the doors slide, offer a smooth glide and reliable performance with solid design and expert engineering. Choose from three to seven operating panels in various configurations.
The door systems are available in a range of colors including white & ivory, wood grain laminates, such as mahogany, golden oak, Montana, marcore and a variety of other solid colors.

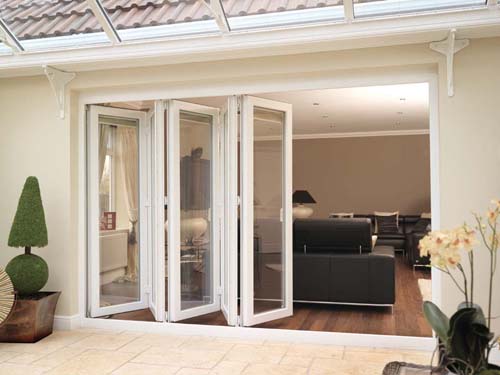

Fold and Slide - Inward Opening
Product Features
Alternative outer frame and sill sizes available
Thresholds can be standard outer frames or low profile aluminum thresholds to suit different installations, weather and security performance requirements
Alternative beads avail. in sloped or sculptured designs
Glazing beads avail. for different IG-Sizes 3/4" to 1-1/2"
Ideal in both residential and commercial applications
Available in swing or out swing opening
70mm front to back multi- chambered profiles
Available in white, bone, clay, wood grain and colored finishes (laminated)
Standard windows, thermal insulation windows, sliding elements, terrace and balcony doors
Tilt and turn windows, turn windows, casement windows, parallel tilt and slide door, single or multi sash, fixed or combined.
The design of the running rail at the sill, transfers the weight of the sashes safely to the floor. As a result, safe functioning is provided, independent from the building construction at the head.
Folding sashes with a maximum with of 900mm and a weight of 80kg are possible.
Provided with compression gaskets, the units offer a high air and water infiltration performance, as well as optimal heat and sound insulation.
Stylish appearance due to a flat guide rail and concealed hardware
Fold and Slide doors can be delivered as inward or outward opening units. Applications for 3 to 7 sash units are possible.
Top running and bottom running units can be delivered depending on hardware manufacturer
Zero-Thresholds are available upon request depending on hardware manufacturer.

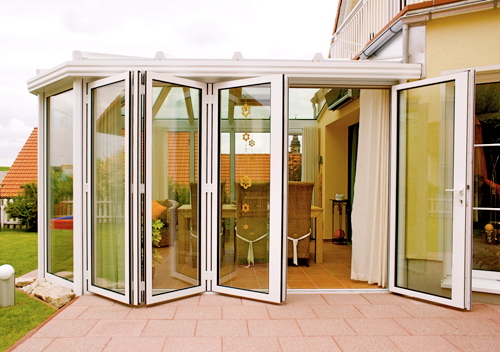

Fold and Slide - Outward Opening
Profile System
Elegant, slightly rounded edges
3-chamber profile with a basic overall depth of 58mm (2-1/4")
Wall thickness 3mm (1/8")
Versions: recessed, semi-recessed
Sight lines 96-132.5 mm (3-3/4"5-1/4")
Steel-reinforcement according to VEKA guidelines
Functionality and Usability
Standard windows, thermal insulation windows, sliding elements, terrace and balcony doors
Tilt and turn windows, turn windows, casement windows, parallel tilt and slide door, single or multi sash, fixed or combined.
Quality Control
AAMA PVC profile testing & certification to AAMA 109
AAMA testing & certification to 101/I.S./A440-05
Physical Requirements
Thermal insulation according to NFRC
Energy Star
Sound Transmission Control per AAMA 1801-97
Coefficient of Heat Transition Uw-Value window element (depending on glazing )
Warm edge: up to (U-Value 0.176) (BTU/H*ft2*F) (R-Value 5.7)
With Aluminum edge: up to (U-Value 0.194) (BTU/H*ft2*F) (R-Value 5.2)
Sealing System
Compression seals in frame and sash all the way around
Two sealing level with high-quality gaskets
Standard color: grey, 0ptional black
Glazing System
Glazing area 21mm (7/8") frame/sash
Thickness of window glass (for frames and sash) combined with standard glazing beads: 6-32 mm (1/4"-1-1/4")
Hardware
All brand hardware, that is approved for quality and function
Handles can be used individually
Accessories
Build-up profiles, extensions, window sill connections, wall connections, couplings, special reinforcing, ventilation, and more
Horizontal cross section of 3 - panel door (in swing)
Fold and Slide - Inward Opening
Fold and Slide - Outward Opening
